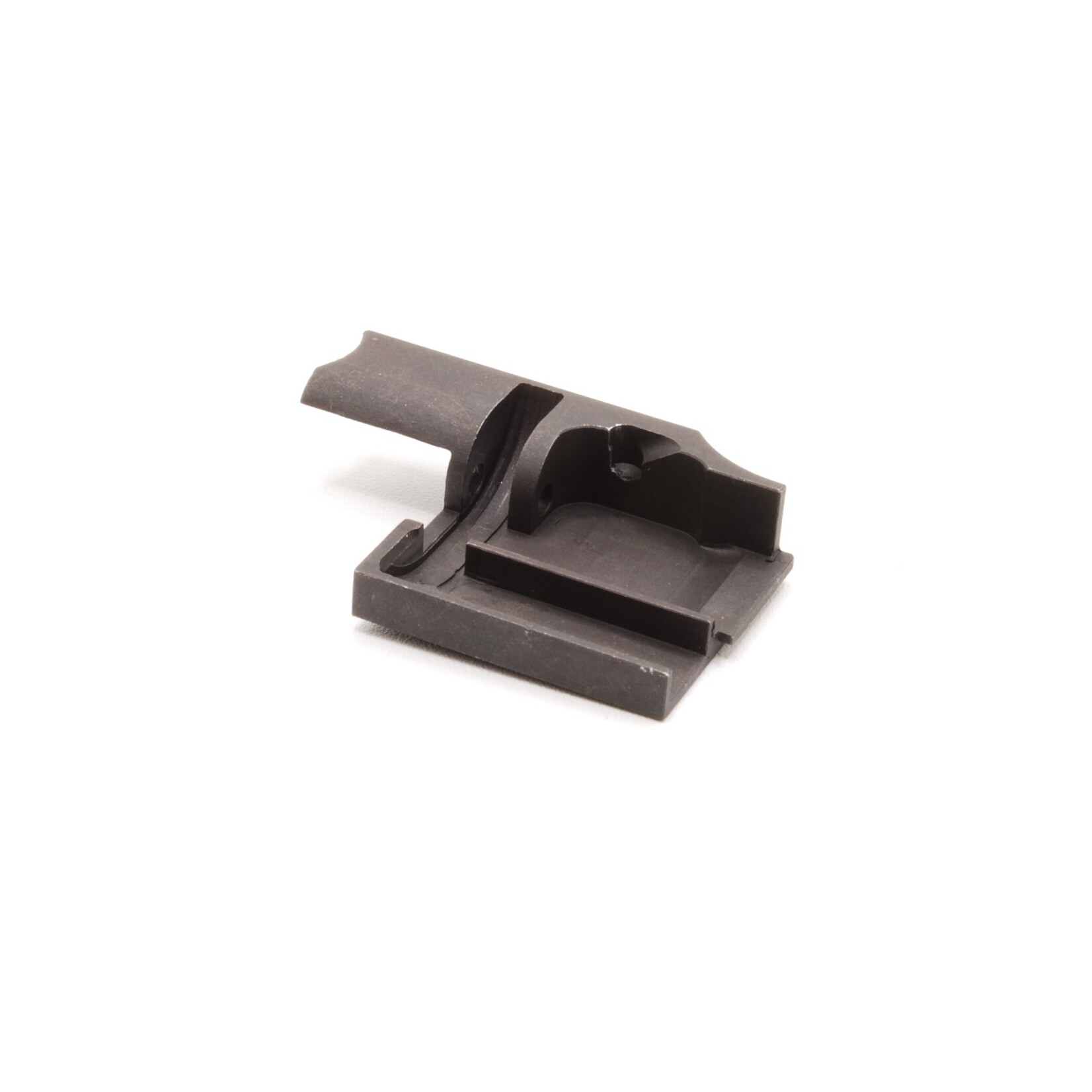

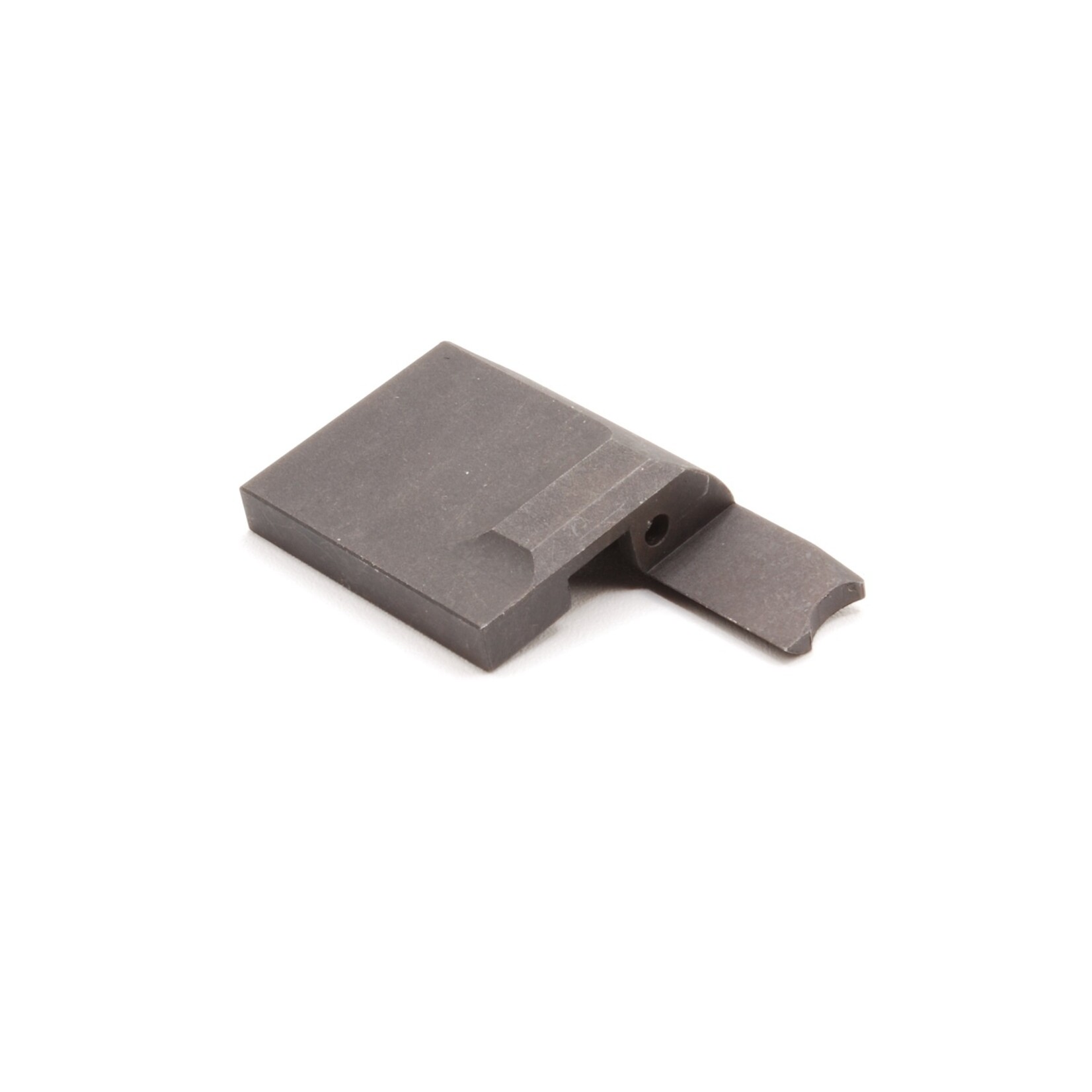

P08 Luger Trigger Side Plate

The trigger side plate is one of the defining features of the P08 Luger design. Mounted on the left-hand side of the frame, it serves as more than a simple cover, acting as a structural component that retains and supports several parts of the trigger mechanism. The trigger lever, trigger bar plunger, plunger spring and their retaining components are all housed within or guided by this assembly.

Because the side plate establishes the position of these internal parts, dimensional accuracy is essential. The machined recesses and bearing surfaces must align correctly with the frame so that the trigger mechanism operates without unnecessary friction or excessive clearance. Even slight distortion or damage can influence trigger movement and the relationship between the trigger lever and sear.

Before installing a replacement side plate, the mating surfaces of the frame should be cleaned and inspected for burrs or signs of previous repairs. It is also advisable to examine the trigger lever, plunger and associated springs while the mechanism is accessible. Once assembled, the side plate should sit flush against the frame without forcing the internal components out of alignment.

Although often overlooked, the trigger side plate plays an important role in preserving the precise geometry of the P08 firing mechanism. Correct fit ensures that the internal components remain properly supported, allowing the pistol to retain the smooth mechanical characteristics for which the Luger is renowned.
