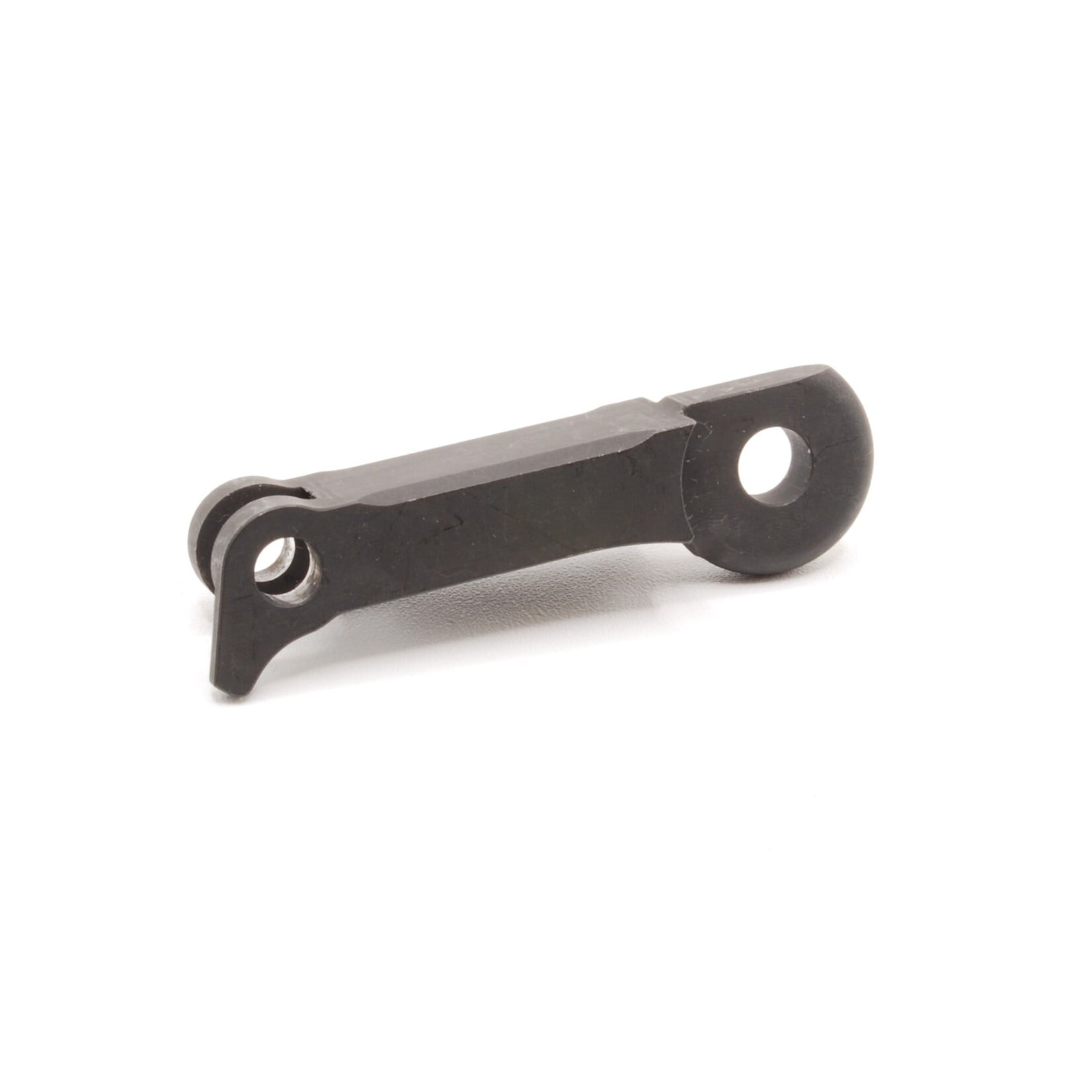

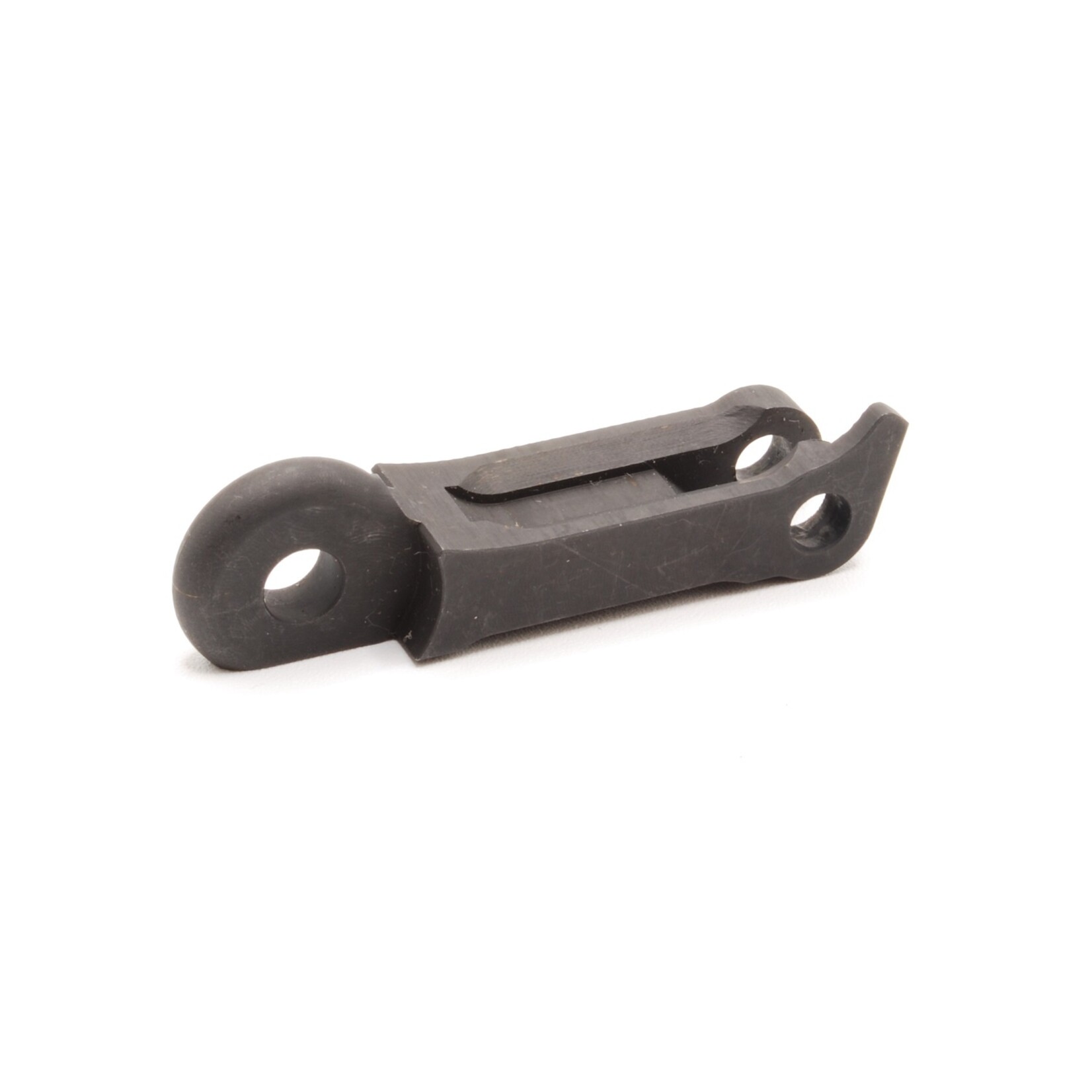

P08 Luger Forward Toggle Link

The forward toggle link forms the front section of the P08 Luger's articulated toggle assembly. Connected to the coupling link at its rear and the barrel extension at its front, it plays a central role in the movement of the toggle-lock mechanism. During firing, this component follows a precisely controlled path as the action unlocks and returns to battery, making accurate dimensions and smooth bearing surfaces essential.

The pivot holes and contact surfaces are manufactured to match the original design, ensuring proper articulation of the toggle assembly throughout its operating cycle. The forward toggle link is subjected to repeated mechanical loads as the pistol cycles, and wear at the pivot points may gradually introduce play that can affect the movement and timing of the locking system.

When replacing the forward toggle link, the coupling link, rear toggle link and toggle pins should also be inspected for wear or elongation. These components function as a complete assembly, and replacing only one worn part may not restore the original fit if the adjoining parts have also seen extensive use. During reassembly, the toggle should move smoothly through its full range of travel without tight spots or excessive lateral movement.

A correctly fitted forward toggle link preserves the geometry of the toggle assembly and helps maintain the precise mechanical operation that distinguishes the P08 Luger from other self-loading pistols.
