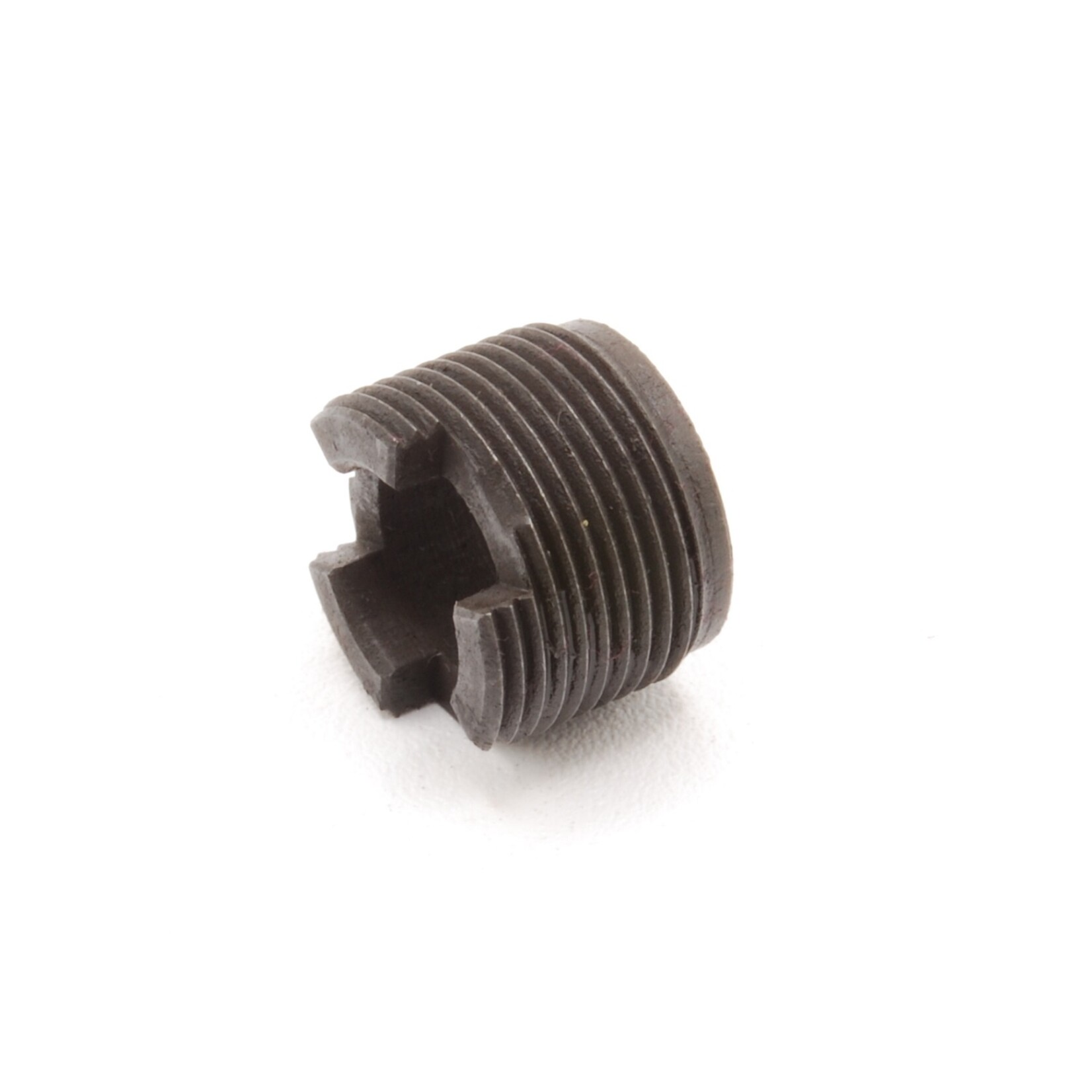

.30 M1 Carbine Piston Nut

The piston nut of the .30 M1 Carbine is a small but essential component of the rifle's short-stroke gas system. Threaded into the gas cylinder beneath the barrel, it retains the gas piston while allowing it to move freely over its limited operating travel. Correct installation is vital, as the piston must move without binding while remaining securely contained within the gas cylinder.

When a cartridge is fired, a portion of the expanding propellant gases is diverted into the gas cylinder. The gas pressure drives the piston rearward only a short distance, transferring energy to the operating slide. This movement initiates the unlocking of the rotating bolt and starts the complete operating cycle of extraction, ejection, feeding and chambering.

The piston nut is subjected to repeated heat cycles, carbon fouling and vibration. Damaged threads, excessive wear or improper removal can compromise the retention of the piston and negatively affect the reliability of the gas system. Because the nut is staked during assembly, removal should be carried out using the correct M1 Carbine piston nut wrench to avoid damaging the gas cylinder.

Manufactured from durable chromium-molybdenum (CrMo) steel, this replacement piston nut provides the strength required to withstand the operating pressures generated by the M1 Carbine gas system. During installation, it is advisable to inspect the gas piston and gas cylinder for carbon build-up or wear to ensure smooth operation of the complete mechanism.
