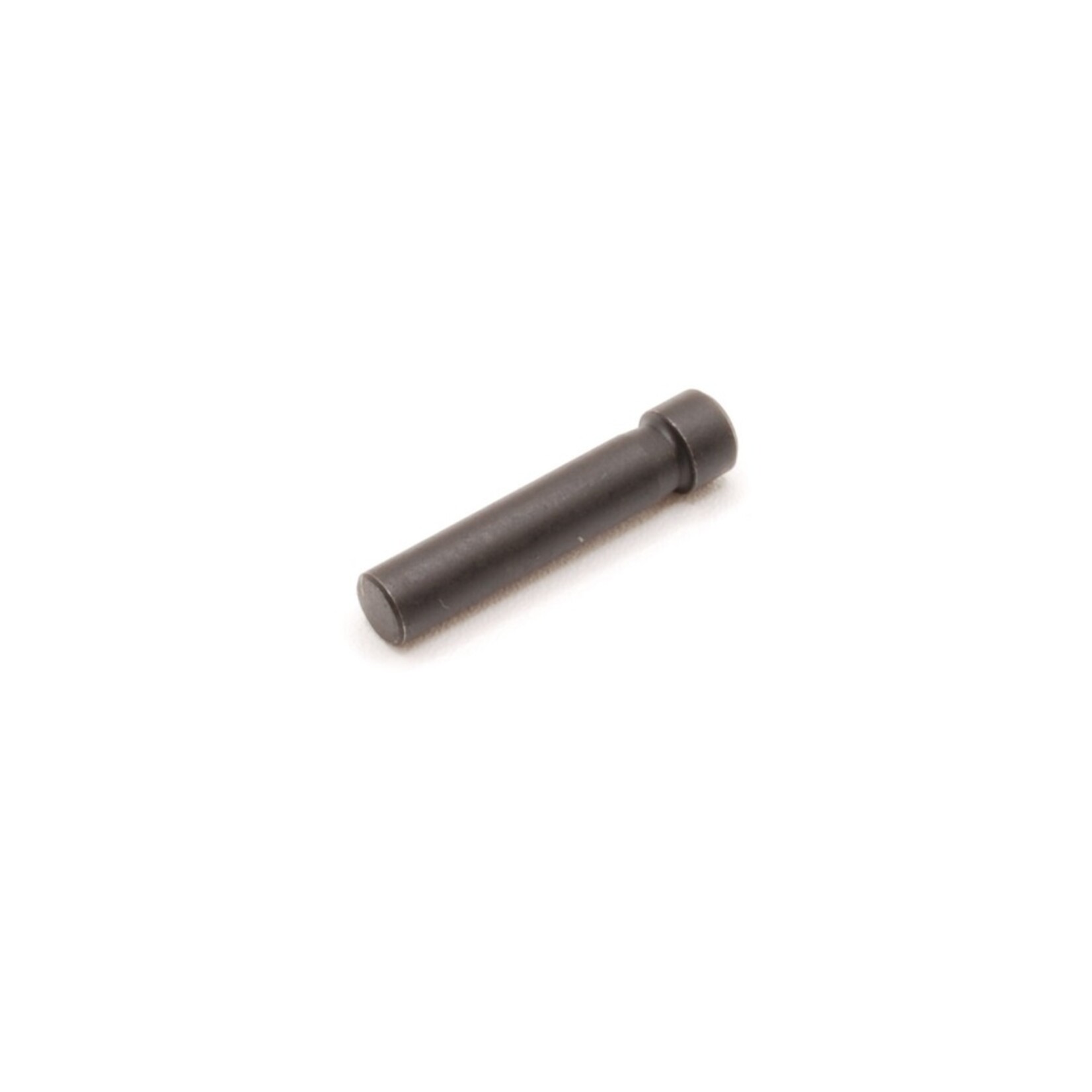

.30 M1 Carbine Hammer Pin

The hammer pin serves as the pivot shaft for the hammer within the .30 M1 Carbine trigger housing. It supports the hammer throughout its full range of movement, allowing it to rotate freely while maintaining the precise alignment required for consistent engagement with the trigger and sear.

The pin is manufactured to original dimensions, providing an accurate fit within the trigger housing and hammer. Correct tolerances are important, as excessive clearance can introduce unwanted movement, while an oversized or damaged pin may restrict the hammer's travel. A properly fitted hammer pin helps preserve the original geometry of the fire control group and promotes consistent trigger operation.

Whenever the trigger housing is disassembled, the hammer pin should be inspected for scoring, wear or deformation. It is also advisable to examine the hammer pivot hole and the corresponding holes in the trigger housing, as prolonged use may gradually increase clearance between the components. Before reassembly, all bearing surfaces should be cleaned and lightly lubricated to ensure smooth pivoting of the hammer.

Although simple in appearance, the hammer pin is a critical locating component within the trigger group. Maintaining correct alignment between the hammer, trigger and sear helps preserve the dependable operation of the M1 Carbine fire control mechanism.
