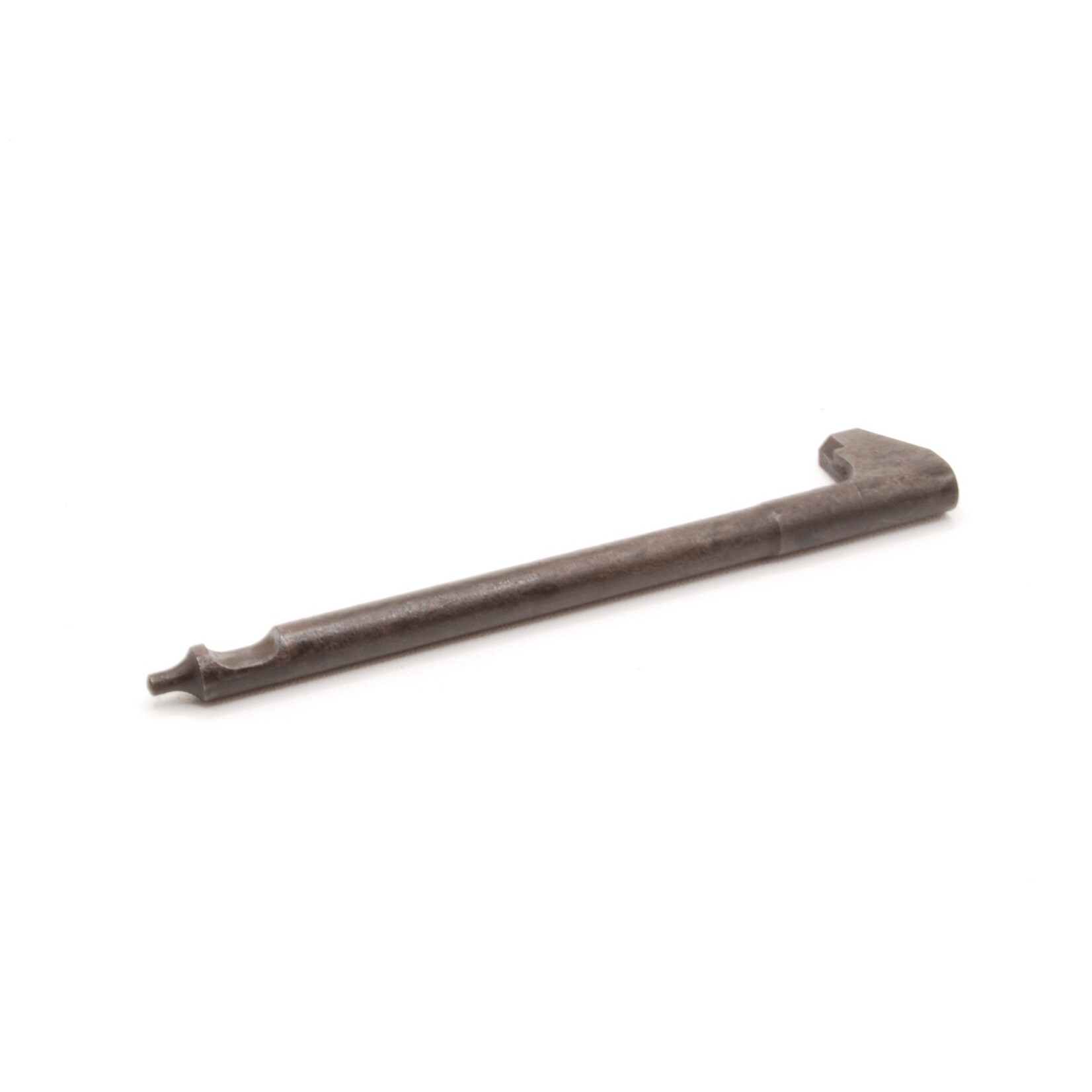

.30 M1 Carbine Firing Pin

The firing pin of the .30 M1 Carbine is a critical component of the rifle's bolt assembly, converting the hammer's impact into reliable primer ignition. Operating within the rotating bolt, it moves freely through its guide channel and is struck by the hammer only after the bolt has fully locked into battery. This sequence ensures safe and consistent operation of the carbine.

During firing, the firing pin is subjected to repeated impact forces and constant movement within the bolt. After prolonged use, the striking tip may become rounded, chipped or shortened, while accumulated fouling inside the bolt can restrict its movement. These conditions may lead to light primer strikes, inconsistent ignition or occasional misfires.

This replacement firing pin is manufactured to restore the original geometry and function of the M1 Carbine bolt assembly. Proper installation should include inspection of the firing pin channel, firing pin spring (where applicable), bolt cam surfaces and extractor components to ensure unrestricted movement and reliable operation.

Although the overall design of the M1 Carbine remained consistent throughout wartime production by manufacturers such as Inland, Winchester, Underwood, IBM, National Postal Meter and others, bolt designs evolved during production. Always verify compatibility with the specific bolt type fitted to your rifle before installation.
