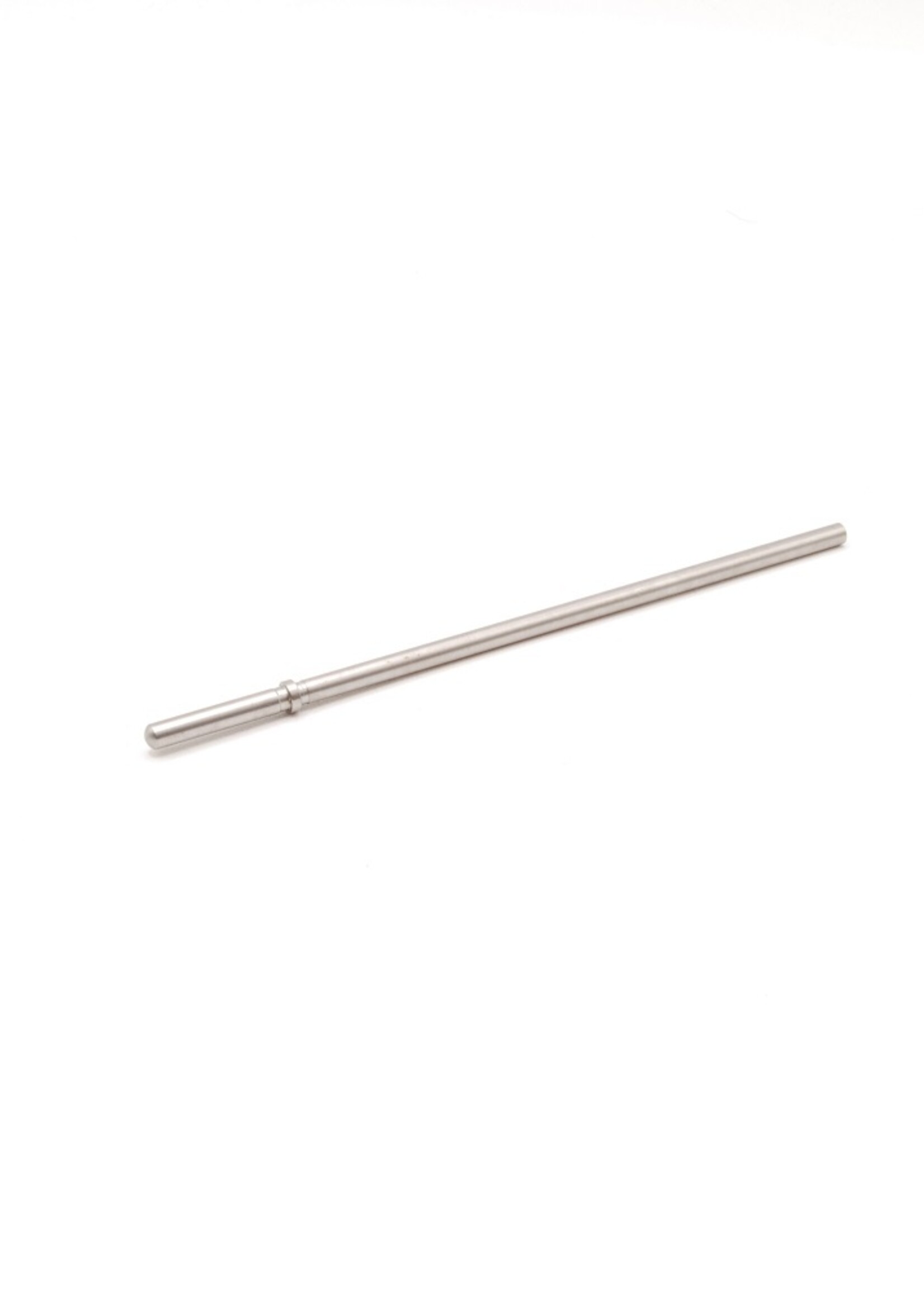

Smith & Wesson Cylinder Center Pin 074720000 – K & L Frame Revolvers

The Smith & Wesson Cylinder Center Pin (Part No. 074720000) is a precision-manufactured replacement component designed for a wide range of Smith & Wesson K-Frame and L-Frame revolvers. The center pin plays a critical role in cylinder alignment and lock-up, ensuring reliable operation and consistent timing of the revolver.

Manufactured from high-quality stainless steel, this replacement part offers excellent resistance to wear and corrosion while maintaining dimensional stability under repeated use. Precision machining ensures proper fitment and dependable cylinder locking performance.

Technical Specifications

• Manufacturer Reference: 074720000
• Part Type: Cylinder Center Pin
• Material: Stainless Steel
• Length: Approximately 100 mm (+/-)
• Condition: New
• Precision-machined replacement part

Compatible Models

• Smith & Wesson Model 64
• Smith & Wesson Model 67
• Smith & Wesson Model 617
• Smith & Wesson Model 686
• Other Smith & Wesson K-Frame revolvers
• Other Smith & Wesson L-Frame revolvers

Features

• Ensures proper cylinder alignment and lock-up
• Corrosion-resistant stainless steel construction
• Precision manufactured for reliable fit and function
• Suitable for maintenance, repair, and restoration projects

Note: Due to manufacturing variations between revolver models, production years, and firearm condition, minor fitting by a qualified gunsmith may be required to ensure optimal operation.
