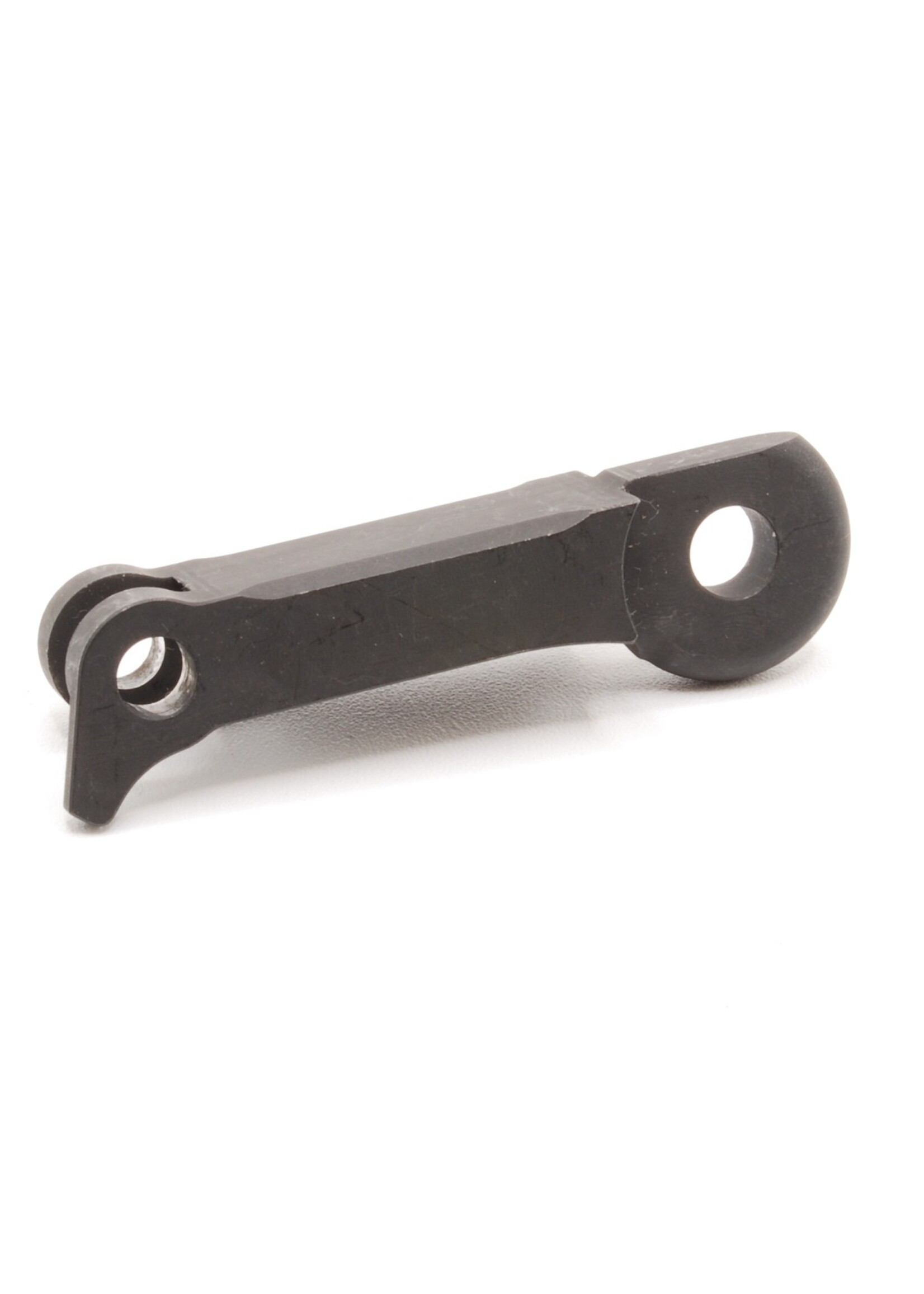

P08 Luger Forward Toggle Link

The Forward Toggle Link of the P08 Luger pistol is the front component of the distinctive toggle-lock mechanism. It connects the barrel and receiver assembly to the rear toggle link, forming the jointed arm that gives the Luger its unique operation. When the pistol is fired, the recoil forces drive the barrel and toggle rearward together until the toggle strikes the cam surface inside the frame. This action causes the toggle joint to bend upward, unlocking the breech and allowing the spent cartridge case to be ejected.

The forward toggle link is machined from steel and precisely fitted with hinge pins to ensure smooth articulation. It houses the joint that locks in a straight line under firing pressure, giving the system its strong mechanical lockup. Proper alignment and condition of the forward toggle link are critical for reliable cycling, accuracy, and the safe operation of the Luger pistol.
